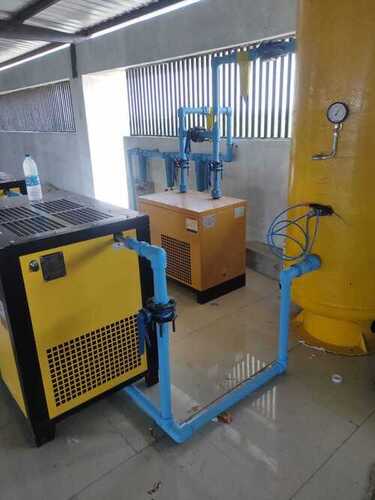

Compressed Air Piping System

Name: Compressed Air Piping System
Brand: A-1 AIR & GAS CO.
Price: 200 INR
Availability: InStock

Price 200 INR/ Meter

Get a Price/Quote

MOQ : 1 Meter

Compressed Air Piping System Specification

Bend Radius
Fixed (not recommended for bending)

Yield Strength
160 MPa

Thread Type
BSP

Tensile Strength
180 MPa

Diameter
20 mm to 110 mm

Sealing Type
EPDM O-rings

Tolerance
0.1 mm

Connection Type
Quick Connect

Flexibility
Rigid

Coating Type
Electrostatic powder coated

Temperature Range
-20C to +80C

Product Type
Compressed Air Piping System

Material
Plastic

Connection
Male

Shape
Round

Standard
ISO 8573-1

Surface Treatment
Anodized

Outer Diameter
20 mm - 110 mm

Section Shape
Circular

Length
6 meters (standard)

Thickness
2.5 mm

Color
Blue

Usage
Compressed air distribution

Rated Pressure
16 bar (Max)

Application
Industrial, Automotive Plants, Food & Beverage Industries

Material Grade
6063-T6

Maintenance
Low

Fire Resistance
Yes (self-extinguishing)

Compatible Fluids
Compressed air, inert gases

Corrosion Resistance
Excellent

Leakage Rate
0.1% at max pressure

Installation Method
Modular and clamp fitting

System Expandability
Easily extendable and reconfigurable

Service Life
> 25 years under normal operating conditions

Pressure Drop
Low (optimized for efficient flow)

Noise Reduction
Designed for silent operation

Fitting Material
Nickel-plated brass

UV Resistance
Yes

Weight
Lightweight due to aluminium material

Compressed Air Piping System Trade Information

Minimum Order Quantity
1 Meter

Supply Ability
100 Per Week

Delivery Time
1 Week

About Compressed Air Piping System

In order to cater the needs of consumers, we are providing a supreme range of Compressed Air Piping System. It is avail in a larger quantity at cost effective prices. This system is to deliver compressed air to the points of usage. Compressed Air Piping System is useful to power the components that use the compressed air. Provided system is for transfer of energy in industrial processes. It is integrated with powerful motor system to increase its speed and efficiency.

Specification

Application	COMPRESSED AIR, GAS, CHILL WATER, STEAM, VACUUM
Thickness (mm)	6mm 8mm 10 mm 12 mm
Size	1/2 inch, 3/4 inch, 1 inch , 2 inch, 3 inch
Product(s) Type	Industrial Piping
Pressure	up to 40 bar
Temperature	100 Degree C

Advanced Corrosion and Fire Resistance

The system features aluminium piping with an anodized finish for robust corrosion protection and nickel-plated brass fittings. It's UV-resistant and self-extinguishing, providing enhanced fire safety for sensitive industrial and food processing environments. This reliability ensures longevity in demanding conditions.

Effortless Modular Configuration and Quick Connect

Modular design, clamp fittings, and quick-connect BSP threading allow for rapid assembly, resizing, or relocation without specialized tools. The rigid, circular pipes come in standard 6-meter lengths and a range of diameters, supporting easy customization for industrial and automotive plants.

Optimized Performance with Low Maintenance

Engineered for minimal pressure drop and a near-zero leakage rate, this system supports energy-efficient, silent operation. Maintenance demands are low and the anodized coating further minimizes wear. Flexible expandability means growing operations remain streamlined and efficient over decades of service.

FAQ's of Compressed Air Piping System:

Q: How is the compressed air piping system installed and expanded?

A: Installation is simplified through its modular and clamp-fitting design with quick-connect BSP threading. The system can be expanded or reconfigured easily without the need for specialized tools or welding, making it ideal for changing facility layouts or growing operations.

Q: What makes this system corrosion and fire resistant?

A: Pipes are constructed from 6063-T6 aluminium with anodized and electrostatic powder coatings, while fittings are nickel-plated brass. This provides exceptional corrosion resistance. The plastic components are also self-extinguishing, ensuring excellent fire resistance in accordance with the highest safety standards.

Q: Where can this piping system be used effectively?

A: It is suitable for industrial applications, automotive plants, and food & beverage industries. Its adaptability for compressed air and inert gases, high UV resistance, and adherence to ISO 8573-1 standards assure safe and efficient use in various industrial settings.

Q: What is the leakage rate, and how does it benefit operations?

A: The system features a maximum leakage rate of 0.1% at full pressure, which minimizes energy loss and improves operational efficiency. This low leakage rate directly contributes to lower operational costs over the system's service life.

Q: When is maintenance required, and how intensive is it?

A: Routine maintenance is minimal, thanks to corrosion-resistant materials and precision sealing with EPDM O-rings. Typical care involves occasional inspections and cleaning, allowing for uninterrupted, efficient operation over decades.

Q: What is the service life of the piping system and its pressure range?

A: The system offers a service life greater than 25 years under normal working conditions and can safely operate within a maximum pressure of 16 bar, suitable for most industrial compressed air requirements.
