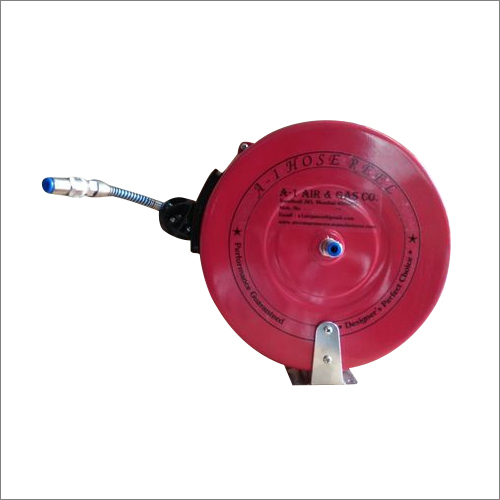

Hose Reel

 Parameters

Unit

Details

Hose Pipe size Outer Diameter

mm

5.5,8,10,12,14,16

Hose Pipe Size Inner  Diameter

Inches

¼, 3/8,1/2,3/4,1,1 ¼, 1  2

Hose length

Meters

5,8,10,15,20,25

Pressure, Std. Range (Max.)

Bar, or Kg/cm2

10

Pressure Spl. Range (Max.)

Bar, or Kg/cm2

700

Temperature, Std. Range (Max.)

Degree C

60

Temperature, Spl. Range (Max.)

Degree C

140

M.O.C , Body

M.S, S.S

              Pipe

P.U,  Spl. Rubber, S.S wire Knit

No. of pipe in hose body Max.

Nos

2

Type

Retractable (Auto rewind ) , Manual wind,

Finish

Powder coated, ( in S.S Glossy, Matt )

Colour Shade : Body

Std.  Shades

Blue, Red, Yellow

Colour Shade : Pipe  Std.

P.U      - Blue                                         Rubber “ Black, Red, Green

Colour Shade : Pipe  Special

If in Qty. Only.

P.U: Orange, Green, Clear, Yellow, Silver Rubber: Yellow, Red

Media

Compressed air, Gas, Hot/ Cold Water, Fuel, Pesticide, Diesel, Petrol, Oil, Paint, Elect. Supply cable etc.
